SEAPEN MEASURING GUIDE

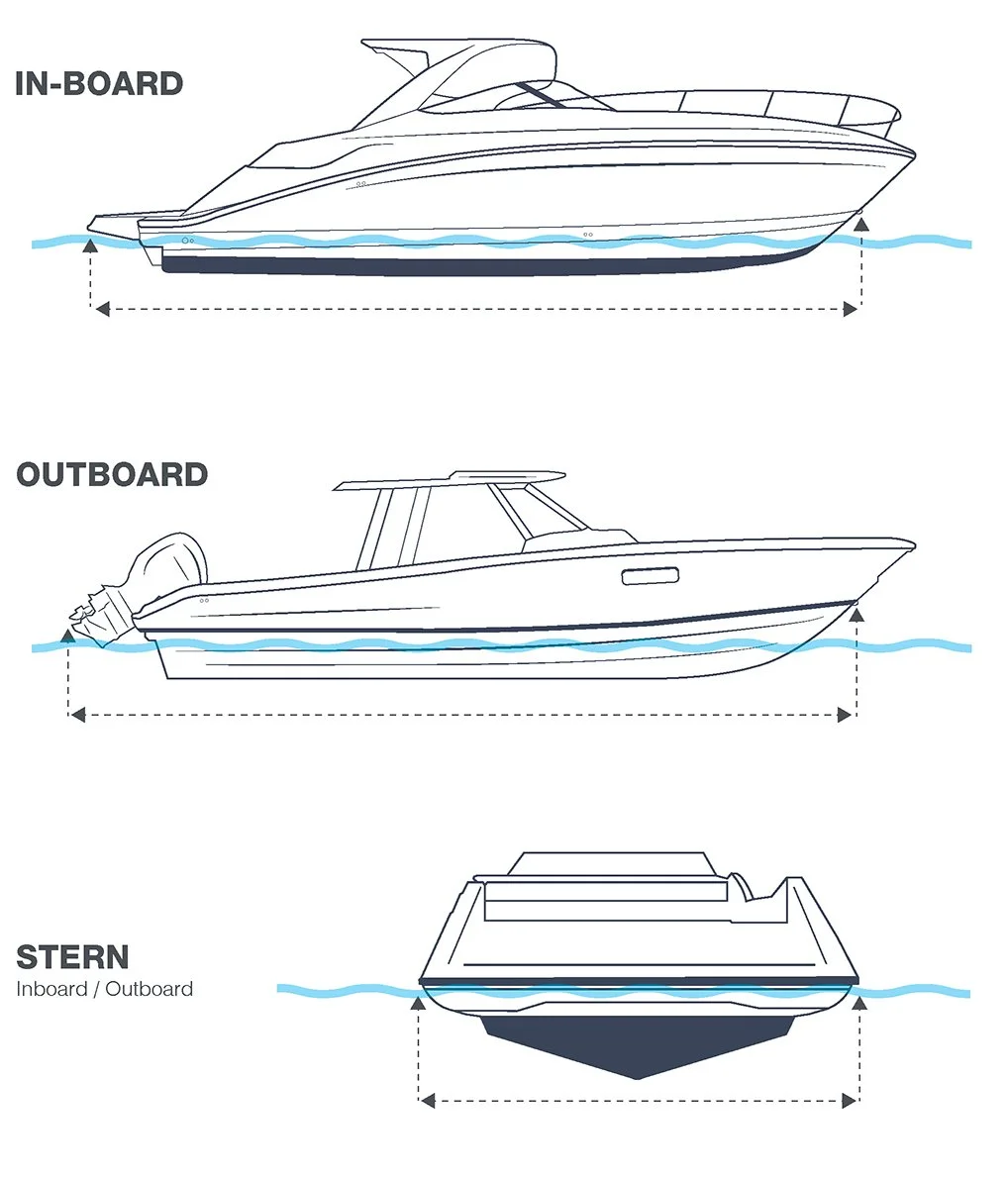

Measuring Your Boat
To properly size the SeaPen to your boat, simply measure from the bow towing eye to tip of the skeg/prop with the lower units tilted up.

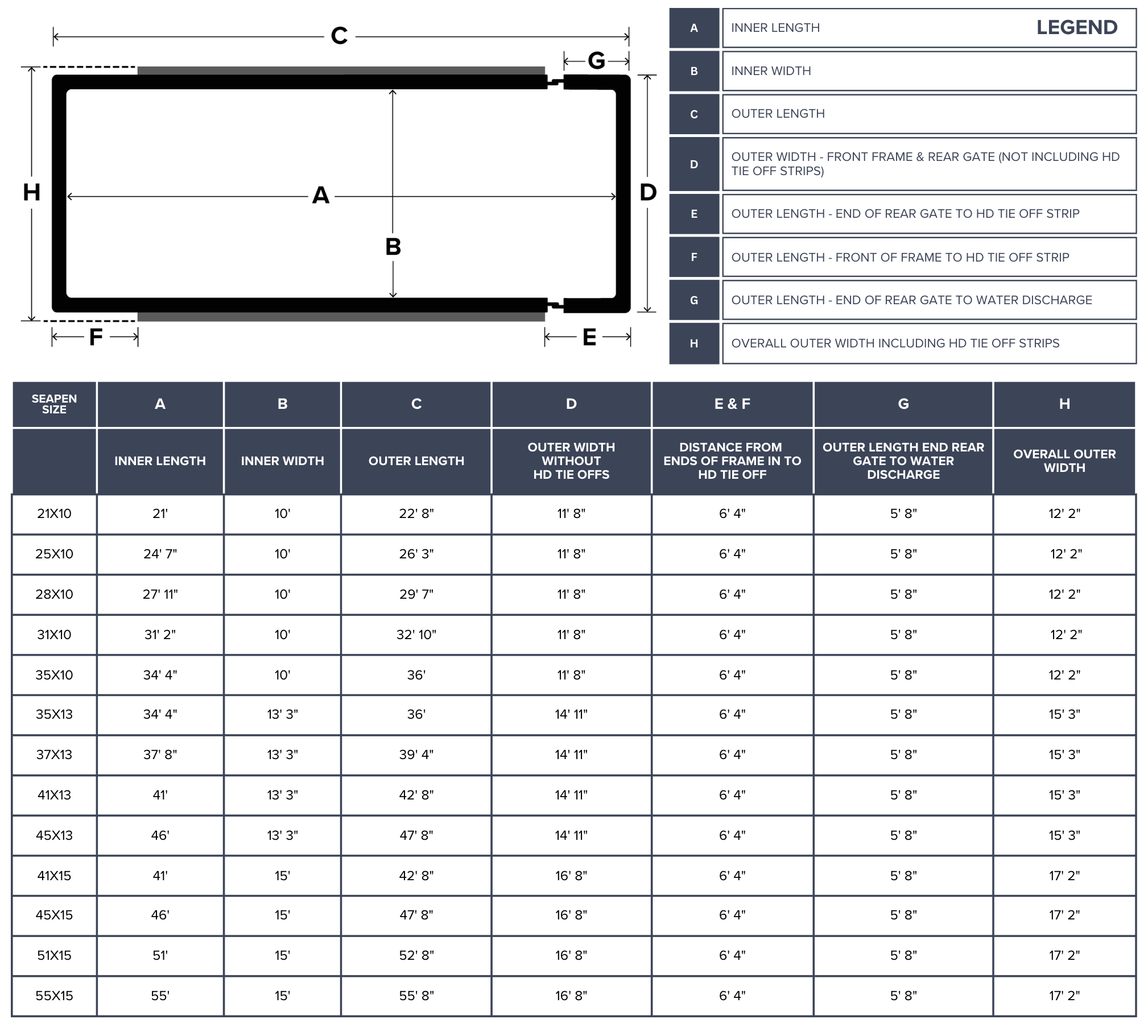

Determining SeaPen Size
To properly determine which size SeaPen best fits your boat, please follow below measurement guidelines utilizing legend key.
MAX BOAT LENGTH GUIDELINES
| V HULL WITH OUTBOARD
Max length of boat at waterline (not overall boat length) is 1FT less than SeaPen DIM A from bow to tips of engine skegs when fully raised.
| STERNDRIVE
Max length of boat at waterline (not overall boat length) is 2FT less than SeaPen DIM A from bow to tips of engine skegs when fully raised.
| JET DRIVE WAKE & SKI
Max length of boat at waterline is 2FT less than SeaPen DIM A from bow to rear most portion of jet drive or platform (whichever is further back).
| CATAMARAN OR PONTOON/TRITOON WITH OUTBOARD
Max overall length of boat is 1FT less than SeaPen DIM A from top of bow to tops of engine skegs when fully raised.
MAX BOAT WIDTH GUIDELINES
| ALL BOATS
Max width at the waterline is 1FT less than SeaPen DIM B.
SPECIALTY SETUPS
| CATAMARAN HULLS
Requires a specific deep membrane, 2nd water pump & pump bag for 10' wide unit (larger units include the 2nd water pump & pump bag.
| WAKE & SKI BOATS
Requires a specific deep membrane and rope net with extra ARMORMESH and weight strips.
| STERN & JET DRIVE
Requires optional ARMORMESH on 10' wide.
SeaPen Frame Details
Understanding SeaPen frame side tube details including walkway & HD tie off strips.
